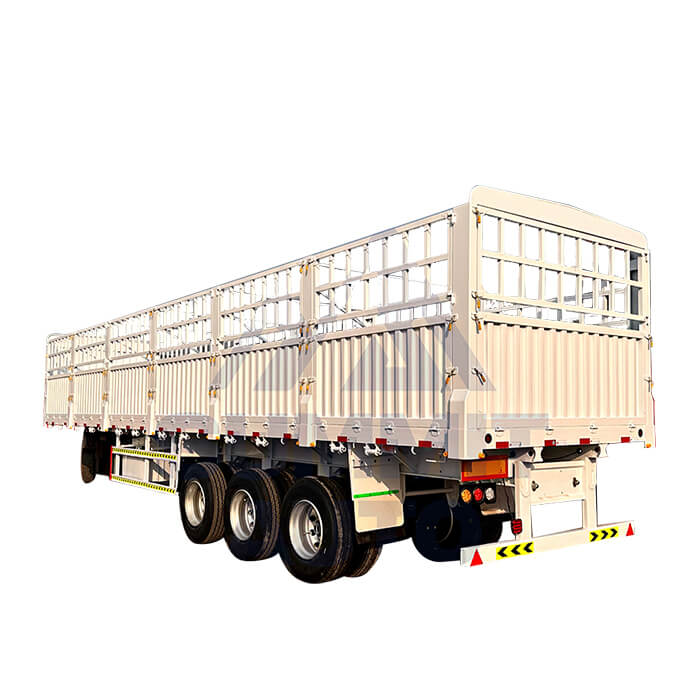

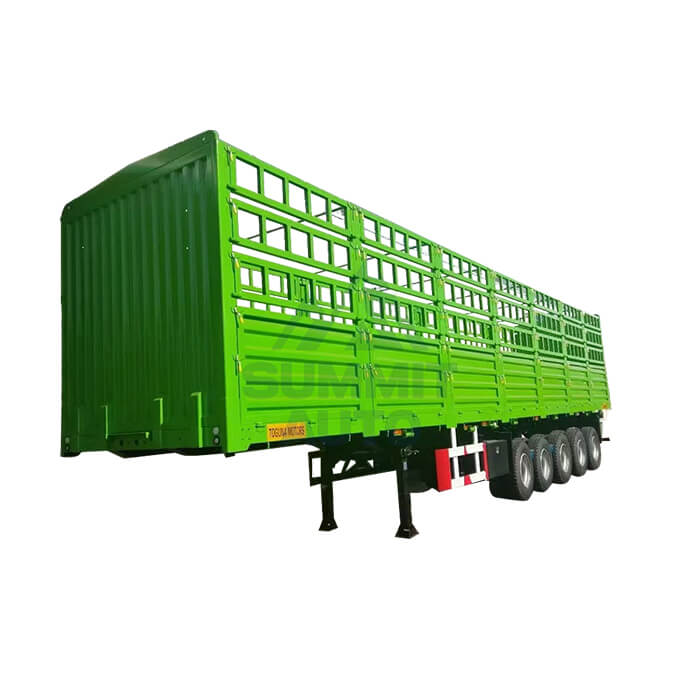

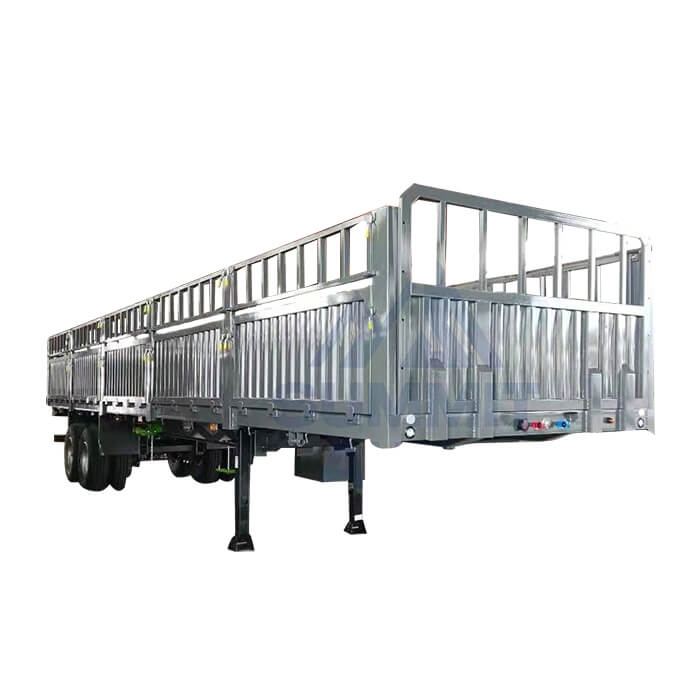

Stake Semi Trailer
Stake semi trailers are widely used in the transportation industry and are considered an essential means of transport for freight stations and express companies. These trailers are commonly used to transport various goods, including vegetables, fruits, clothes, household appliances, daily necessities, and even livestock such as sheep and cattle.
Parameters
| Payload | 60,000kg |
| Tare weight | 73,000kg |
| Dimension | 13000x2500x1550mm (with removable fence 2200mm) |
| Wheelbase | 1310mm |
| Main beam | Beam height 500mm, upper plate 14mm, bottom plate double 8mm, middle plate 16mm, made of Q345 steel |
| Cross/side beam | Q235, channel steel |
| Floor | 3mm diamond steel plate |
| Painting | Complete chassis sandblasting to clean rust, coat of anti-corrosive primer, 2 coats of final paints |
| Tool box | 1 piece |
| Axle | 3 x 16ton FUWA Axle |
| Suspension | Mechanical suspension |
| Leaf spring | 90(W)mm*16(thickness)mm*10 layers |
| Tyre | 12R22.5, 16pcs, Triangle tire Rim 9.0-22.5 |
| Kingpin | JOST King Pin bolt-in type 50mm |
| Landing gear | Double speed, external 28 tons |
| Brake system | WABCO valve dual-line braking system |
| Electrical system | 1 voltage 24V, 2 receptacle: 7 ways (7 wire harness), tail lamp with turn signal, brake light & reflectors, side lamp etc. One set 6-core standard cable. |

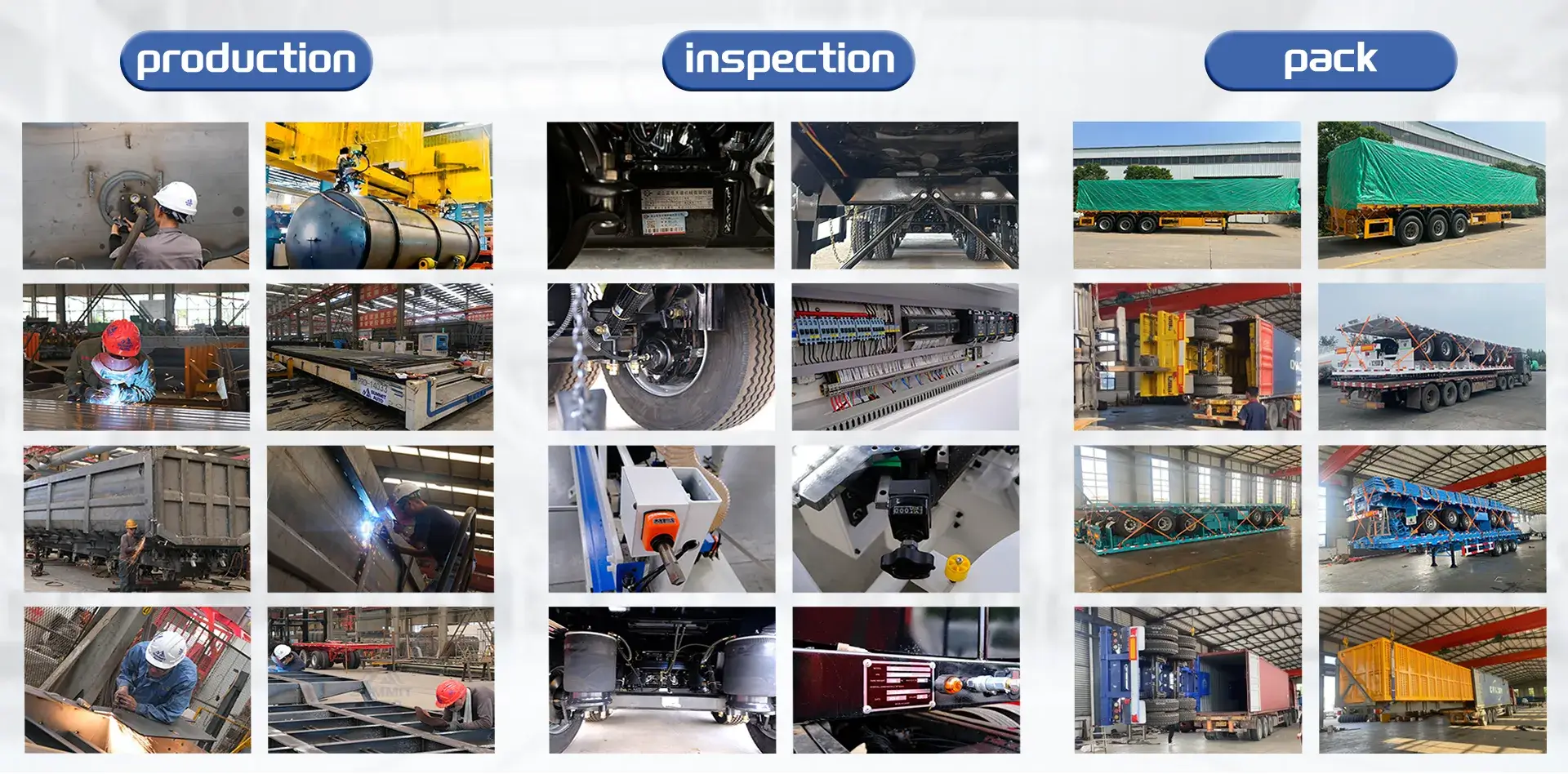

Package and Transport
