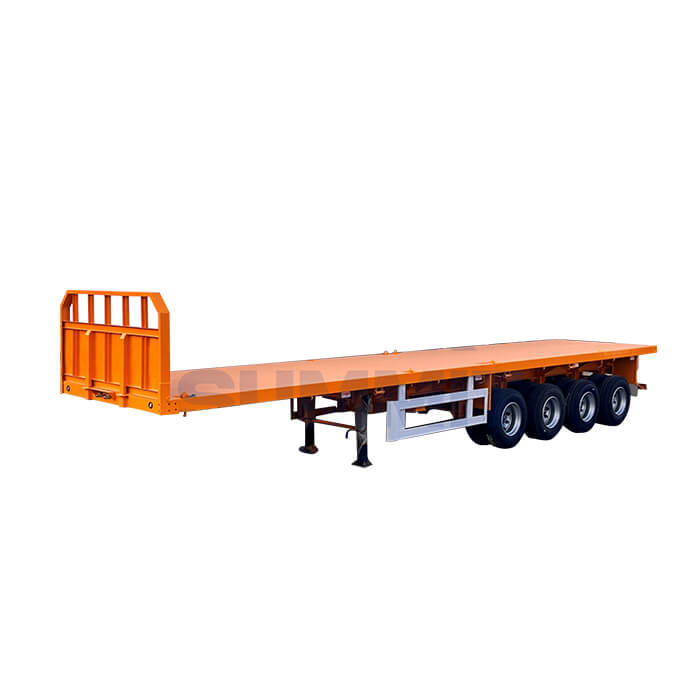

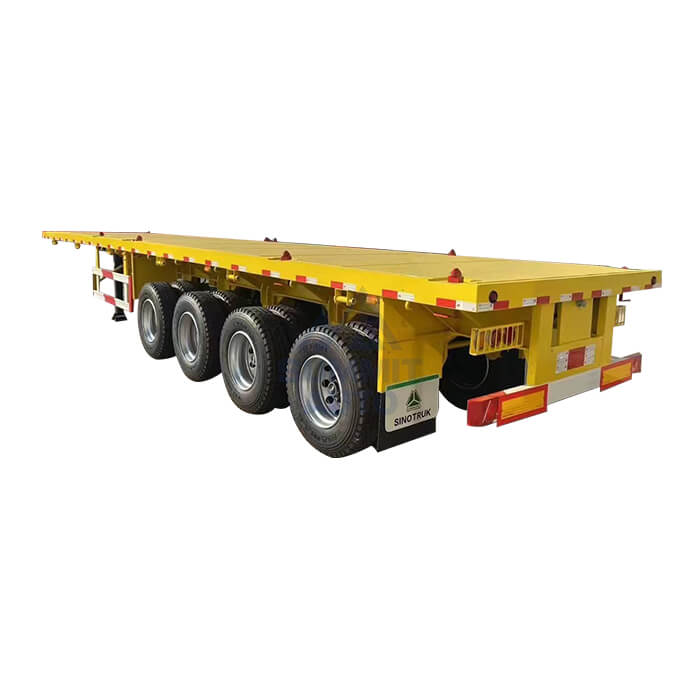

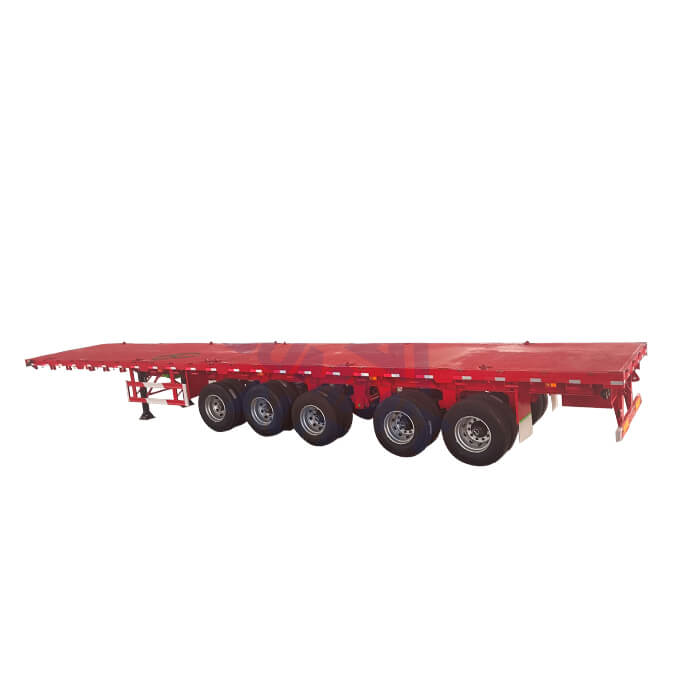

Flatbed Trailer

A flatbed trailer features a high-strength steel chassis with an open platform design, engineered for efficient loading of heavy and oversized cargo. Its reinforced main beams, multi-axle configuration, and optimized load-distribution structure ensure excellent stability, high payload capacity, and compatibility with forklifts, cranes, and side-loading operations. Ideal for industrial equipment, construction materials, and long-distance freight transport.

Parameters

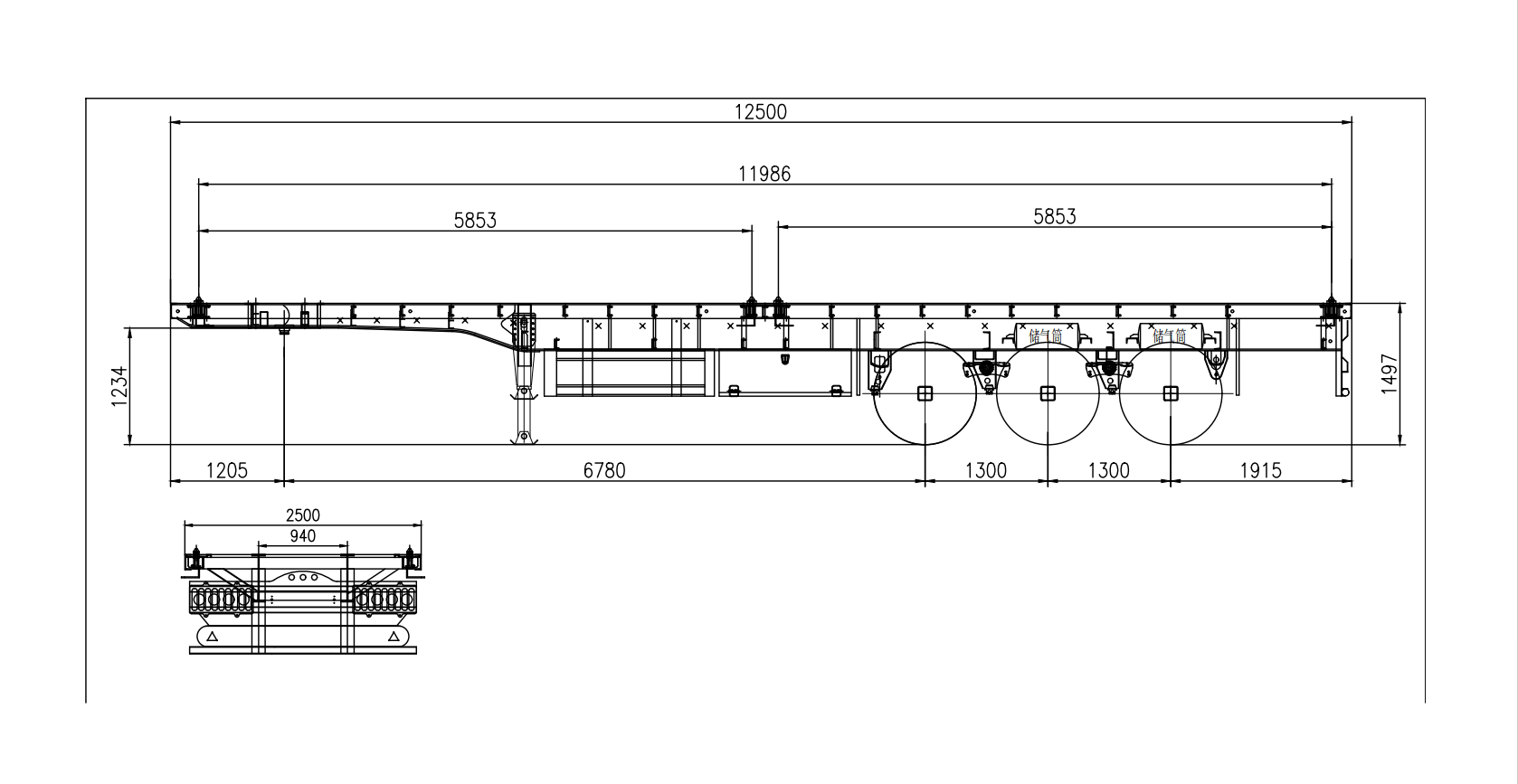

flatbed Trailers CAD
Dimension(mm)12500x2500x1500mm
Loading capacity(ton)≤60T
Axles3 axle flatbed trailers for sale
SuspensionMechanical suspension

Platform3mm-thick checkered plate

Twist Locks4,8,12 sets (lifting or screw type)
LightLED light (specially intended for oversea market)
Voltage24V
PaintingSandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package and Transport
